Name: Unitronics Jazz® Micro OPLC™ Series 2 (with Ethernet option)
Brand: Unitronics
SKU: JZ20
Availability: InStock

Unitronics Jazz® Micro OPLC™ Series 2 (with Ethernet option)

PLC with built-in text display, Keypad, and on board I/O

The Unitronics Jazz OPLC, the fully functional PLC with a two line 16 character inbuilt text display, has just had new variants added to it’s range. The Jazz 2 is faster than previous versions, with a 30 times increase in speed of execution, and has double the memory, rising from 24k to a massive 48k program memory.

Replace that “smart relay” with a real PLC – for the same low price. Jazz™ is a full-function programmable logic controller with onboard I/O and a built-in operator panel. Jazz™ is specifically designed to control small machines and to perform simple-to-medium automation tasks. Compact and economical, Jazz™ enables you to use a low-budget unit without compromising on features and technology.

To program these, you will need the U90 programming software.

We have 8 versions of this with different Inputs and Output configurations, and 4 different front ends, giving us 32 options in total. So we might not have the exact option you need in stock, but we will have something very close. Plus, we get deliveries EVERY week.

Interested in a powerful colour touch screen PLC? Check Out the Samba

Description

PLC with built-in text display, keypad, and on board I/O

The Jazz™ may be a low-cost PLC but there is no compromise on functionality with floating-point maths and PID control available.

Plus two lines 16-character display and plug-in terminals.

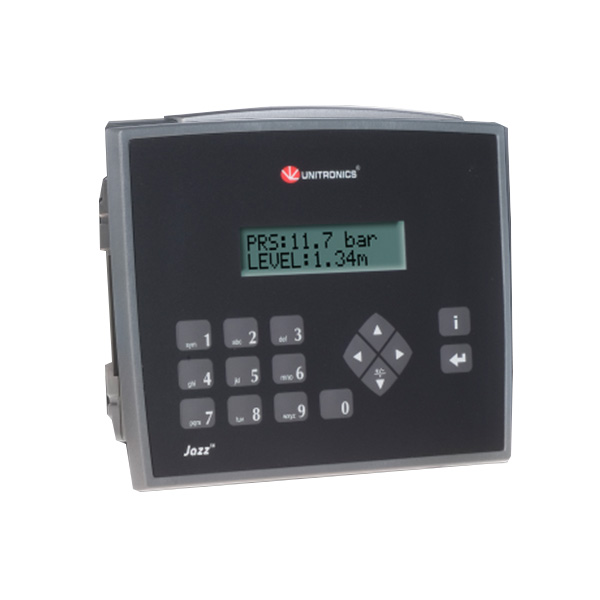

Now with a wipe clean flat front (black versions) , ideal for food and pharmaceutical applications, the Jazz™ has the same high functionality and same low price, whichever style is used, and both versions meet IP66 ingress protection.

Additional information

IO Options	JZ20-R16-N, JZ20-T40, JZ20-UN20, JZ20-J-R31-N, MJ20-ET1, JZ20-J-R16, JZ20-J-R16HS, JZ20-J-R31, JZ20-J-T18, JZ20-J-T20HS, JZ20-J-UA24, JZ20-J-UN20-N, JZ20-R16, JZ20-R31, JZ20-T18, JZ20-T40, JZ20-UA24, JZ20-J-R10, JZ20-J-R10-N, JZ20-R10, JZ20-R10-N, JZ20-J-R16-N

U90 Ladder

U90 Ladder is the first programming software for early Unitronics’ PLCs. This basic programming software can be used to program the M90/91 & Jazz series of PLC.
See a full overview in the video below.

The new Jazz™ offers the flexibility of ladder programming (48K Ladder code, virtual), on-board I/O configurations (some models with direct temperature inputs), communication options, such as GSM/SMS, remote access, and MODBUS (Master or Slave) networking. The latest Series 2 Jazz now includes USB programming options.

The Jazz™ HMI application enables you to design up to 60 text screens, using up to 64 HMI variables for the display of time, date, and real-time system data. Jazz™ programming is as easy as it gets – build ladder logic control applications using click-and-drop elements and create your HMI application in the same simple environment.

You can use U90 Ladder and the associated software utilities to program, control, access and download data to and from the PLC remotely and directly.

Get more information about the U90 programming software HERE

Manuals

(-N in the part number indicates the item does not have a logo on the front bezel. All components are identical except for this small cosmetic difference)

JZ20 Manuals	Description	Install Manual	Technical Manual
JZ20-J-R10(-N) JZ20-R10(-N)	24VDC, 6 Digital Inputs, 4 Relay Outputs
JZ20-J-R16(-N) JZ20-R16(-N)	24VDC, 6 Digital Inputs, 2 Digital/Analogue Inputs, 2 Analogue Inputs, 6 Relay Outputs
JZ20-J-R16HS(-N)	6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 6 Relay outputs
JZ20-J-R31(-N) JZ20-R31(-N)	16 Digital, 2 D/A , 2 Analog Inputs1 11 Relay Outputs
JZ20-J-T10(-N) JZ20-T10(-N)	6 Digital Inputs 4 Transistor Outputs
JZ20-J-T18(-N) JZ20-T18(-N)	6 Digital, 2 D/A, 2 Analog Inputs1 8 Transistor Outputs
JZ20-J-T20HS(-N)	6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 10 Transistor outputs
JZ20-J-T40(-N) JZ20-T40(-N)	16 Digital, 2 D/A, 2 Analog Inputs1 20 Transistor Outputs
JZ20-J-UA24(-N) JZ20-UA24(-N)	9 Digital Inputs, 1 HSC, 2 A/D, 2 AI, 2 TC/PT100, 5 Relay Outputs, 2 Transistor Outputs, 2 AO
JZ20-UN20(-N) JZ20-J-UN20(-N)	9 Digital, 2 D/A1, Analog 1 TC/PT100 Inputs1 5 Relay 2 Transistor Outputs

Inputs/Outputs

		Inputs				Outputs
Part No.	Summary	Digital (Isolated)	HSC/ Shaft Encoder	Analogue	Temp (MEAS)	Transistor (Isolated)	PWM/HSO	Relay	Analogue	Operating Voltage
JZ20-J-R10 JZ20-R10	6 Digital Inputs 4 Relay Outputs	6	2 10kHz, 16-bit	None	None	None	None	4	None	24VDC
JZ20-J-R16 JZ20-R16	6 Digital, 2 D/A , 2 Analog Inputs1 6 Relay Outputs	8		2 0-10V 10 or 12-bit 2 0-20mA, 4-20mA 10-bit	None	None	None	6	None	24VDC
JZ20-J-R16HS	6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 6 Relay outputs	8		2 0-10V 10 or 12-bit 2 0-20mA, 4-20mA 10-bit	None	None	None	6	None	24VDC
JZ20-J-R31 JZ20-R31	16 Digital, 2 D/A , 2 Analog Inputs1 11 Relay Outputs	18		2 0-10V 10 or 12-bit 2 0-20mA, 4-20mA 10-bit	None	None	None	11	None	24VDC
JZ20-J-T10 JZ20-T10	6 DigitalInputs 4 Transistor Outputs	6		None	None	4 pnp	None	None	None	24VDC
JZ20-J-T18 JZ20-T18	6 Digital, 2 D/A, 2 Analog Inputs1 8 Transistor Outputs	8		2 0-10V 10-bit 2 0-20mA, 4-20mA 10-bit	None	8 pnp	None	None	None	24VDC
JZ20-J-T20HS	6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 10 Transistor outputs	8		2 0-10V 10-bit	None	8 pnp	2 32kHz	None	None	24VDC
JZ20-J-T40 JZ20-T40	16 Digital, 2 D/A, 2 Analog Inputs1 20 Transistor Outputs	18		None	None	20 pnp	None	None	None	24VDC
JZ20-J-UA24 JZ20-UA24	9 Digital Inputs, 1 HSC, 2 A/D, 2 AI, 2 TC/PT100, 5 Relay Outputs, 2 Transistor Outputs, 2 AO	11		2 0-20mA 4-20mA 2 0-10 VDC	2 Thermocouple, PT100	2 pnp	2	5	2 10V 4-20mA 12-bit	24VDC
JZ10-11-UN20 JZ10-J-UN20	9 Digital, 2 D/A1, Analog 1 TC/PT100 Inputs1 5 Relay 2 Transistor Outputs	11	1 5kHz, 16-bit	2 0-10V 10-bit 1 0-20mA, 4-20mA 10-bit	1 Thermocouple, PT100	2 pnp	2	5	None	24VDC

Accessories

Part No.	Description	Install Manual	Technical Manual
MJ20-ET1	Ethernet communication port
JZ-PRG	RS232 programming kit consists of MJ10-22-CS10, MJ20-CB200 6 wire programming cable and an MJ20-PRG
JZ-RS4	RS232/RS485 programming kit consists of MJ10-22-CS25, 4 wire programming cable and an MJ20-RS
MJ20-PRG	RS232 programming port module
MJ20-RS	RS232/RS485 programming port module
MJ20-MEM1	Program cloning module
MJ20-JZ-SL1	Keypad slide set

24V DC Power Supplies

Part Number	PU	Data Sheet
722752	Regulated, 18 W Power Supply
722753	Regulated, 30 W Power Supply
722754	Regulated, 60 W Power Supply
722758	Regulated, 120 W Power Supply
722759	Regulated, 240 W Power Supply
722800	Regulated, 480 W, 3-Phase Power Supply
