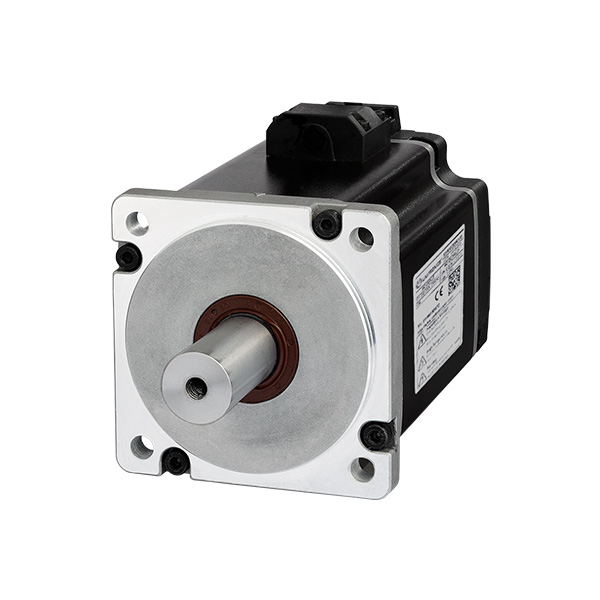

UMD & UMM-B5 / E5-S AC Servo Drives

Unitronics Servo Drives & Motors (UMD & UMM B5/E5-S)

Servo drives made simple: we aim to make your life easier with these features-

  • Motors: low and medium inertia
  • Drives: single and three-phase grid support, robotic cables available
  • No Motion programming needed: simply download and tap a panel to:
    -Set motion parameters
    -Monitor Axis behaviour and IOs
    -Execute movements, such as Point-to-Point, Jog, and Homing
  • Wide servo power range – 0.05kW up to 7.5 kW (0.06-10 HP)
  • IP65 and IP67
  • 23-bit built-in high-resolution absolute encoders
  • Minimizes Error: UniLogic software analyses mechanical properties and recommends safe values for your application
  • Diagnostics: View servo run-time performance via the UniLogic built-in powerful, high-speed scope
  • Auto-tune your system: Using only one single parameter
  • Comprehensive Protection: motor overheating, short-circuit protection, DB braking fault and more
  • Built-in STO
  • Zero stacking installation
  • 350% momentary maximum torque

Description

Easy Motion Control – Complex applications

The Hardware:
Drives, Motors, Cables (standard and robotics) – all seamlessly supported by Unitronics’ PLCs, HMIs, & VFDs

  • Drives: 1 and 3-phase, robotic cables available
  • Wide servo power range – 50W to 5,000W (0.06-6.7 HP)
  • Motors: to suit any machine size; robust, built-in high-resolution serial encoders
    (absolute: 23-bit , incremental: 20-bit), IP65
  • Built in communications – EtherCAT or CANopen

The Software:
One integrated software for your complete motion application: PLC, HMI, Servo, VFD, and I/O

UniLogic® Software Makes Motion Control Simple

  • Servo drives and Motors: Simple setup
  • Instant Integration: Absolutely seamless
  • Communications: Totally transparent, automatic setup
  • Ready-made code: Get moving immediately!
  • Motion Control programming: Drag & drop PLCopen-compliant function blocks
  • Control up to 8 Axes
  • One-parameter tuning

VisiLogic® Software Makes Motion Control Simple

  • Servo drives and Motors: Simple setup
  • Instant Integration: Absolutely seamless
  • Communications: Totally transparent, automatic setup
  • Motion Control programming: Drag & drop PLCopen-compliant function blocks
  • Control up to 3 Axes
  • Sample VisiLogic application: Adapt it to your needs, and get moving!

Manual





Drive & Motor Manual Description User Manual
UMD B5 (CANOpen) Series UMD-B5 AC Servo
Installation and User Guide		 PDF Link
UMD E5-S (EtherCAT) Series UMD-E5-S AC Servo
Installation and User Guide		 PDF Link
B5 & E5-S Series Brochure Brochure for the B5 & E5-s Series PDF Link
EtherCAT Servo Start up guide A guide to configure and use EtherCAT with the EtherCAT Servo drives PDF Link
Servo Drive Start up guide A guide to configure and use Servo drives with Canbus PDF Link

Product Range

Motor Specs (B5 50w-1kW)

Motor Specs (B5 1.5kW-5kW)

Motor Specs (B6)

Motor Dimensions (B5)

Motor Dimensions (B6)

Drive Specs

Drive Dimensions

UniLogic

i4 Automation Unilogic Software for Unitronics

UniLogic is the newest modern programming software from Unitronics that is included with this product.

This programming software lets you develop your program in a smarter way saving you money on your programming costs.  With the look and feel of a modern day development suite UniLogic makes the programmer feel at home with a familiar style to the menu structure adopted by most of the Windows™ software providers.

You can use UniLogic to program, control, access and download data to and from the PLC remotely and directly.

Get more information about the UniLogic programming software HERE

Accessories

Designation

EtherCAT

The Following EtherCAT port can be installed on any USC-B5/B10/C5/C10 PLC for control of E3 servo drives.

Part Number Description Install Manual Technical Manual
UAC-01EC2 1x EtherCAT port PDF Link PDF Link

Technical Drawings

Cables

Motor PN Motor Description Encoder Cable PN Encoder Cable Description Power Cable PN Power Cable Description
UMM-0075EA-B6 7.5KW 400V,3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6D-PN-XX Power Cable for B6 motor 7.5KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6D-PN-R-XX Power Cable for B6 motor 7.5KW robotic (03,05,10 = Length)
UMM-0075EAB-B6 7.5KW 400V,3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6D-PB-XX Power Cable for B6 motor 7.5KW +brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6D-PB-R-XX Power Cable for B6 motor 7.5KW +brake robotic (03,05,10 = Length)
UMM-0050EA-B5 5KW 400V,  3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5D-PN-XX Power Cable for B5 motors 4KW-5KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5D-PN-R-XX Power Cable for B5 motors 4KW-5KW robotic (03,05,10 = Length)
UMM-0050EAB-B5  5KW 400V,3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5D-PB-XX Power Cable for B5 motors 4KW-5KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5D-PB-R-XX Power Cable for B5 motors 4KW-5KW+brake robotic (03,05,10 = Length)
UMM-0044EA-B6 4.4KW 400V,3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6C-PN-XX Power Cable for B6 motor 4.4KW-5KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6C-PN-R-XX Power Cable for B6 motor 4.4KW-5KW robotic (03,05,10 = Length)
UMM-0044EAB-B6 4.4KW 400V,3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6C-PB-XX Power Cable for B6 motor 4.4KW-5KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6C-PB-R-XX Power Cable for B6 motor 4.4KW-5KW+brake robotic (03,05,10 = Length)
UMM-0040EA-B5 4KW 400V,  3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5D-PN-XX Power Cable for B5 motors 4KW-5KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5D-PN-R-XX Power Cable for B5 motors 4KW-5KW robotic (03,05,10 = Length)
UMM-0040EAB-B5 4KW 400V,3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5D-PB-XX Power Cable for B5 motors 4KW-5KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5D-PB-R-XX Power Cable for B5 motors 4KW-5KW+brake robotic (03,05,10 = Length)
UMM-0030EAB-B5 3KW 400V,3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0029EA-B6 2.9KW 400V,3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6B-PN-XX Power Cable for B6 motor 2.9KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6B-PN-R-XX Power Cable for B6 motor 2.9KW robotic  (03,05,10 = Length)
UMM-0029EAB-B6 2.9KW 400V,3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B6B-PB-XX Power Cable for B6 motor 2.9KW + brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B6B-PB-R-XX Power Cable for B6 motor 2.9KW + brake robotic (03,05,10 = Length)
UMM-0020CA-B5 2KW 200V, 3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0020CAB-B5 2KW 200V, 3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0020EA-B5 2KW 400V,  3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0020EAB-B5 2KW 400V,3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0018CA-B6 1.8KW 200V, 3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0018CAB-B6 1.8KW 200V, 3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0018EA-B6 1.8KW 400V,3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0018EAB-B6 1.8KW 400V,3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0015CA-B5 1.5KW 200V, 1/3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0015CAB-B5 1.5KW 200V, 1/3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0015EA-B5 1.5KW 400V,  3phase A23 B5 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0015EAB-B5 1.5KW 400V,3phase A23 B5 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0013CA-B6 1.3KW 200V, 1/3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0013CAB-B6 1.3KW 200V,1/3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0013EA-B6 1.3KW 400V,3phase A23 B6 UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PN-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PN-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW robotic (03,05,10 = Length)
UMM-0013EAB-B6 1.3KW 400V,3phase A23 B6 + brake UMC-B56-FA-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (03,05,10 = Length) UMC-B5C6A-PB-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake (03,05,10 = Length)
UMC-B56-FA-R-XX Encoder Cable for B5/B6 motors   1.5KW-7.5KW (-R = Robotic) (03,05,10 = Length) UMC-B5C6A-PB-R-XX Power Cable for B5 motors 1.5KW-3KW/B6 motors 850W-1.8KW+brake robotic (03,05,10 = Length)
UMM-0000BA-B5 50W 200V, 1phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PN-XX Power Cable for B5 motors 50W-400W (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PN-R-XX Power Cable for B5 motors 50W-400W robotic (03,05,10 = Length)
UMM-0000BAB-B5 50W 200V, 1phase A23 B5 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PB-XX Power Cable for B5 motors 50W-400W+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PB-R-XX Power Cable for B5 motors 50W-400W+brake robotic (03,05,10 = Length)
UMM-0001BA-B5 100W 200V, 1phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PN-XX Power Cable for B5 motors 50W-400W (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PN-R-XX Power Cable for B5 motors 50W-400W robotic (03,05,10 = Length)
UMM-0001BAB-B5 100W 200V, 1phase A23 B5 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PB-XX Power Cable for B5 motors 50W-400W+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PB-R-XX Power Cable for B5 motors 50W-400W+brake robotic (03,05,10 = Length)
UMM-0002BA-B5 200W 200V, 1phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PN-XX Power Cable for B5 motors 50W-400W (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PN-R-XX Power Cable for B5 motors 50W-400W robotic (03,05,10 = Length)
UMM-0002BAB-B5 200W 200V, 1phase A23 B5 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PB-XX Power Cable for B5 motors 50W-400W+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PB-R-XX Power Cable for B5 motors 50W-400W+brake robotic (03,05,10 = Length)
UMM-0004BA-B5 400W 200V, 1phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PN-XX Power Cable for B5 motors 50W-400W (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PN-R-XX Power Cable for B5 motors 50W-400W robotic (03,05,10 = Length)
UMM-0004BAB-B5 400W 200V, 1phase A23 B5+ brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5A-PB-XX Power Cable for B5 motors 50W-400W+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5A-PB-R-XX Power Cable for B5 motors 50W-400W+brake robotic (03,05,10 = Length)
UMM-0007CA-B5 750W 200V, 1/3phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PN-XX Power Cable for B5 motors 750W-1kW (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PN-R-XX Power Cable for B5 motors 750W-1kW robotic (03,05,10 = Length)
UMM-0007CAB-B5 750W 200V, 1/3phase A23 B5 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PB-XX Power Cable for B5 motors 750W-1kW+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PB-R-XX Power Cable for B5 motors 750W-1kW+brake robotic (03,05,10 = Length)
UMM-0008CA-B6 850W 200V, 1/3phase A23 B6 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PN-XX Power Cable for B5 motors 750W-1kW (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PN-R-XX Power Cable for B5 motors 750W-1kW robotic (03,05,10 = Length)
UMM-0008CAB-B6 850W 200V,1/3phase A23 B6 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PB-XX Power Cable for B5 motors 750W-1kW+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PB-R-XX Power Cable for B5 motors 750W-1kW+brake robotic (03,05,10 = Length)
UMM-0008EA-B6 850W 400V,3phase A23 B6 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PN-XX Power Cable for B5 motors 750W-1kW (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PN-R-XX Power Cable for B5 motors 750W-1kW robotic (03,05,10 = Length)
UMM-0008EAB-B6 850W 400V,3phase A23 B6 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PB-XX Power Cable for B5 motors 750W-1kW+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PB-R-XX Power Cable for B5 motors 750W-1kW+brake robotic (03,05,10 = Length)
UMM-0010CA-B5 1KW 200V, 1/3phase A23 B5 UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PN-XX Power Cable for B5 motors 750W-1kW (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PN-R-XX Power Cable for B5 motors 750W-1kW robotic (03,05,10 = Length)
UMM-0010CAB-B5 1KW 200V, 1/3phase A23 B5 + brake UMC-B5-FA-XX Encoder Cable for B5 motors 50W-1KW (03,05,10 = Length) UMC-B5B-PB-XX Power Cable for B5 motors 750W-1kW+brake (03,05,10 = Length)
UMC-B5-FA-R-XX Encoder Cable for B5 motors 50W-1KW (-R = Robotic) (03,05,10 = Length) UMC-B5B-PB-R-XX Power Cable for B5 motors 750W-1kW+brake robotic (03,05,10 = Length)
