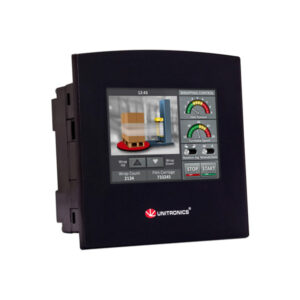

Vision Samba™ 7″ Touchscreen PLC & HMI

PLC with built-in colour TFT display, and on board I/O.

Designed to provide a colour PLC and large HMI at a text display price the Unitronics Samba, combined PLC & HMI, is a very cost effective control solution. Containing most of the functionality of the Vision series of integrated PLC & HMI’s, the Unitronics Samba has a host of communication features and looks good too!

Description

With a wipe clean flat front , ideal for food and pharmaceutical applications, the Samba has the same high functionality and same low price meeting IP66 ingress protection.

This PLC with embedded colour touchscreen All in One offers exceptional capabilities, with its 7″ TFT 65k colour touch screen and 2Mb of memory for the application program, images and fonts.

The PLC benefits from a range of built in function blocks including recipe control, third party device connection, PID, modem communications, SMS and email. The Unitronics Samba supports communication via TCP/IP Ethernet, GSM/GPRS, MODBUS, DF1 and CANopen.

Software development is fast and easy using the Visilogic programming software, plus there is a suite of remote access tools for monitoring and maintenance purposes.

Every Samba 7″ integrated PLC & HMI has a USB port as standard. All Samba’s can have two additional ports fitted, one serial/Ethernet and one CANbus.

Additional information

Unit Size

210 x 146.4 x 42.3mm

Screen Resolution

800×480 pixels TFT, LCD

Digital Inputs

12 (3HSC, 2 Analogue & 2 PT100/TC inputs)

Digital Outputs

8 Relay / 8 Transistor

Analogue Outputs

2 (14bit)

Visilogic

i4 Automation Visilogic Software for Unitronics

VisiLogic is an easy to use and intuitive programming software that is included with this product.

VisiLogic is a powerful software package that allows the Vision™ series of integrated PLC & HMI to be programmed easily and quickly.  The software has a familiar intuitive feel and incorporates many advanced features such as discrete program routines, function blocks, data tables, data logging, trending and alarm handling.  All of the standard maths functions are available and complex formula can be developed without the need to have a degree in computer science!

The integrated intuitive function blocks really make the Vision™ series the powerful devices that they are.  There are many pre-set function blocks available performing a wide variety of advanced tasks as easily as dropping & dragging an icon into your program and configuring a few parameters.

Subjects such as CAN Open networking, Modbus communications, pulse trains outputs and bespoke serial communication protocols all have function blocks available to make the programmers life less difficult.  To find out more detail about the range of function blocks available visit the VisiLogic software page HERE.

You can use VisiLogic and the associated software utilities to program, control, access and download data to and from the PLC remotely and directly.

Get more information about the VisiLogic programming software HERE

Manuals

(-N in the part number indicates the item does not have a logo on the front bezel. All components are identical except for this small cosmetic difference)

Samba Manual Description Install Manual Technical Manual
SM70-J-R20 (-N) 24 VDC supply, 10 digital inputs (1 high speed 30kHz), 2 Analogue/digital inputs (10 bit, 0-10V, 0-20mA), 8 relay outputs, 1 RS232 port PDF Link PDF Link
SM70-J-T20 (-N) 24 VDC supply, 10 digital inputs (3 high speed 30kHz), 2 Analogue/digital inputs (10 bit, 0-10V, 0-20mA), 8 PNP transistor outputs, Outputs 0-6 at 0.5kHz PWM, 1 RS232 port PDF Link PDF Link
SM70-J-RA22 (-N) 24 VDC supply, 8 digital inputs (1 high speed 30kHz), 2 Analogue/digital inputs (14 bit, 0-10V, 0-20mA, 4-20mA), 2 PT100/thermocouple/digital, 8 relay outputs (In 2 Groups), 2 Analogue outputs (12 bit, 0-10V, 4-20mA), 1 RS232 port PDF Link PDF Link
SM70-J-TA22 (-N) 24 VDC supply, 8 digital inputs (1 high speed 30kHz), 2 Analogue/digital inputs (14 bit, 0-10V, 0-20mA, 4-20mA), 2 PT100/thermocouple/digital, 8 Transistor Outputs, 2 Analogue outputs (12 bit, 0-10V, 4-20mA), 1 RS232 port PDF Link PDF Link

Inputs/Outputs

Inputs Outputs
Part No. Summary Digital (Isolated) HSC/ Shaft Encoder Analogue Temp (MEAS) Transistor (Isolated) PWM/HSO Relay Analogue
SM35-J-R20 10 Digital, 2 D/A Inputs, 8 Relay Outputs 12 pnp/npn 1 30kHz 32-bit 2 0-10 V, 0-20mA, 4-20mA 10-bit None None None 8 None
SM35-J-T20 10 Digital, 2 D/A Inputs, 8 Transistor Outputs 12 pnp/npn 3 30kHz 32-bit 2 0-10 V, 0-20mA, 4-20mA 10-bit None 8 pnp 7 0.5kHz None None
SM35-J-RA22 12 Digital, 1 HSC/Shaft-encoder, 2 AI, 2 PT100/TC, 8 Relay, 2 AO 12 pnp/npn 1 30kHz 32-bit 2 0-10 V, 0-20mA, 4-20mA 12/14-bit 2 PT100/TC None None 8 2 0-10V, 4-20mA 12-bit
SM35-J-TA22 12 Digital, 1 HSC/Shaft-encoder, 2AI, 2 PT100/TC, 8 Transistor, 2 AO 12 pnp/npn 1 30kHz 32-bit 2 0-10 V, 0-20mA, 4-20mA 12/14-bit 2 PT100/TC 8 pnp 5 0.5kHz None 2 0-10V, 4-20mA 12-bit

Communications

Part Number Description Install Manual Technical Manual

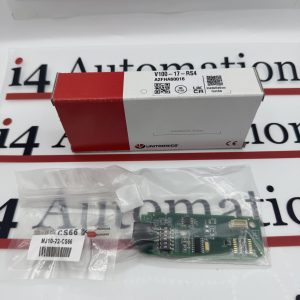

V100-17-RS4 1 RS232/RS485 port PDF Link PDF Link
V100-17-RS4X 1 RS232/RS485 port (Isolated) PDF Link PDF Link

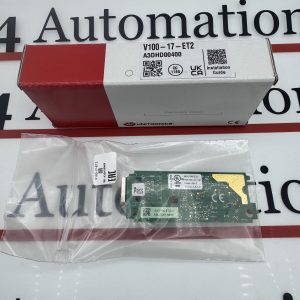

V100-17-ET2 /

V100-S-ET2

1 Ethernet port

1 Ethernet port (V350). [For V350 high temp PLC]

PDF Link PDF Link

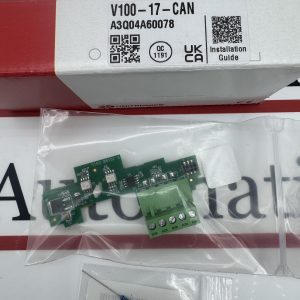

V100-17-CAN /

V100-S-CAN

1 CANbus port (Isolated)

1 CANbus port (Isolated) [For V350 high temp PLC]

PDF Link PDF Link

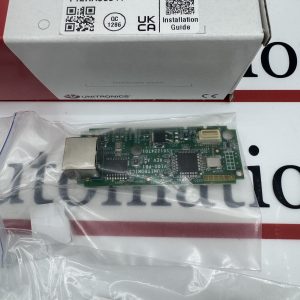

V100-17-PB1 Profibus Slave Module (V130, V350, V430, V700) PDF Link PDF Link

HMI Sizes

Screen Size Part Number More Info

3.5″

SM35-J-xxx

5" Built in IO PLC

4.3″

SM43-J-xxx

7" Built in IO PLC

7″

SM70-J-xxx

10" Built in IO PLC

Modem & Routers

Part No. Description Install Manual Quick Start Manual User Guide
GSM-KIT-16J KIT,MODEM GPRS,CINTERION ,BGS2T PDF Link N/A N/A
GSM-KIT-17J-3G KIT,MODEM GPRS,CINTERION ,EHS6T PDF Link N/A N/A
UniStream Cloud Routers
UCR-ST-B5-EU Unitronics Router B5 Europe PDF Link PDF Link PDF Link
UCR-ST-B8-EU Unitronics Router B8 Europe PDF Link PDF Link PDF Link
UCR-ST-B5-AT Unitronics Router B5 USA AT&T PDF Link PDF Link PDF Link
UCR-ST-B8-AT Unitronics Router B8 USA AT&T PDF Link PDF Link PDF Link
UCR-ST-B5-VE Unitronics Router B5 USA Verizon PDF Link PDF Link PDF Link
UCR-ST-B8-VE Unitronics Router B8 USA Verizon PDF Link PDF Link PDF Link
UCR-ST-B5-SA Unitronics Router B5 Rest of World PDF Link PDF Link PDF Link
UCR-ST-B8-SA Unitronics Router B8 Rest of World PDF Link PDF Link PDF Link
UCR-OP-B5-DIN UCR B5B8 DIN RAIL KIT N/A
Legacy i4A Routers
RUT230i4A Teltonika RUT230 HSPA+ 3G Router with 2 x Ethernet ports and Wi-Fi- supplied with DIN rail mounting kit + magnetic indoor aerial. Discontinued
RUT240i4A Teltonika RUT240 HSPA+ 4G Router with 2 x Ethernet ports and Wi-Fi- supplied with DIN rail mounting kit + magnetic indoor aerial. Discontinued
BAC Net routers
GW-BAC1 BACnet to Modbus Gateway PDF Link
GW-KNX1 BACnet to Modbus Gateway PDF Link
ULC-BNET101 BACnet IP Server Unistream License N/A

24V DC Power Supplies

Part Number PU Data Sheet
722752 Regulated, 18 W Power Supply PDF Link
722753 Regulated, 30 W Power Supply PDF Link
722754 Regulated, 60 W Power Supply PDF Link
722758 Regulated, 120 W Power Supply PDF Link
722759 Regulated, 240 W Power Supply PDF Link
722800 Regulated, 480 W, 3-Phase Power Supply PDF Link
