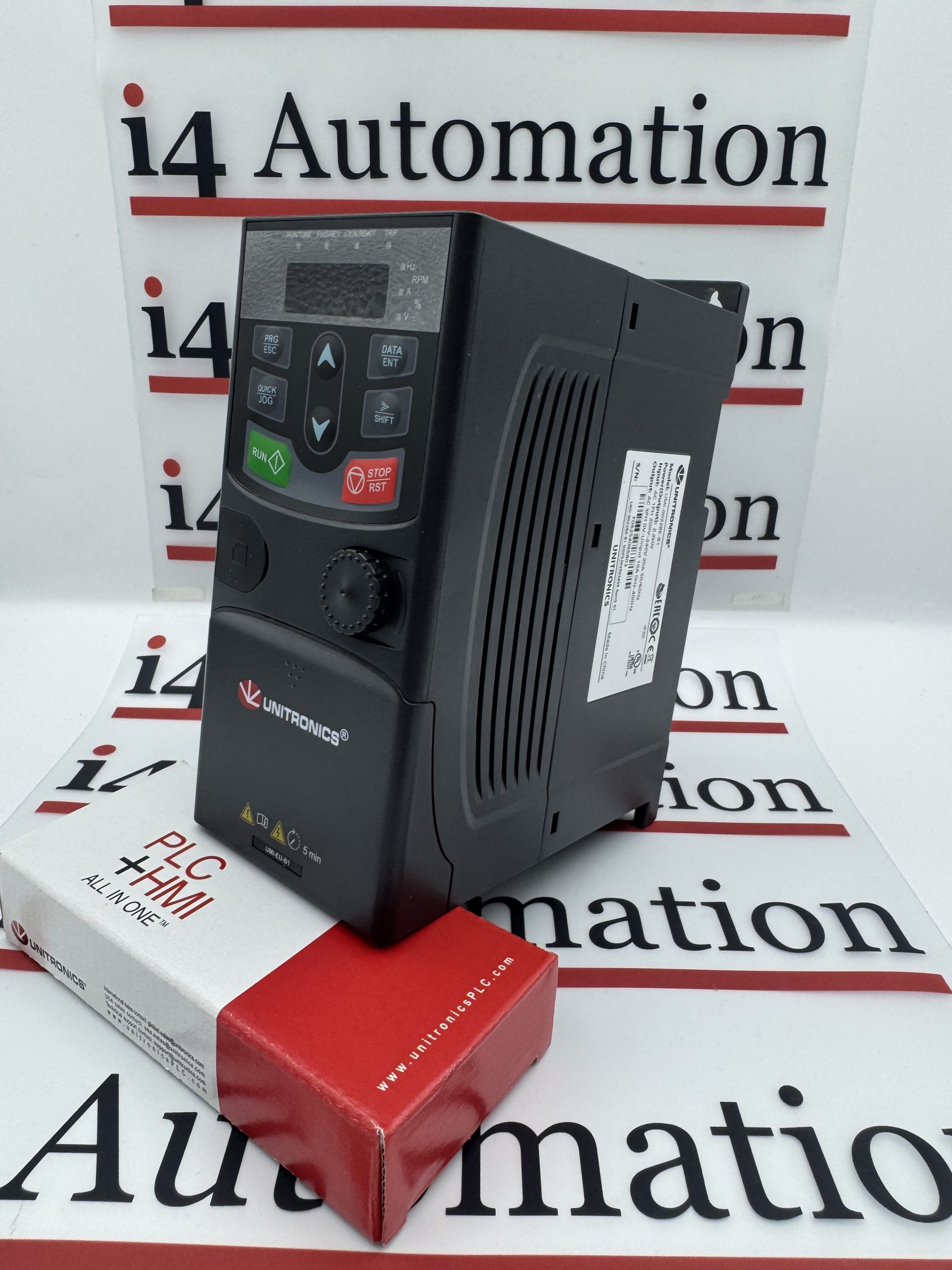

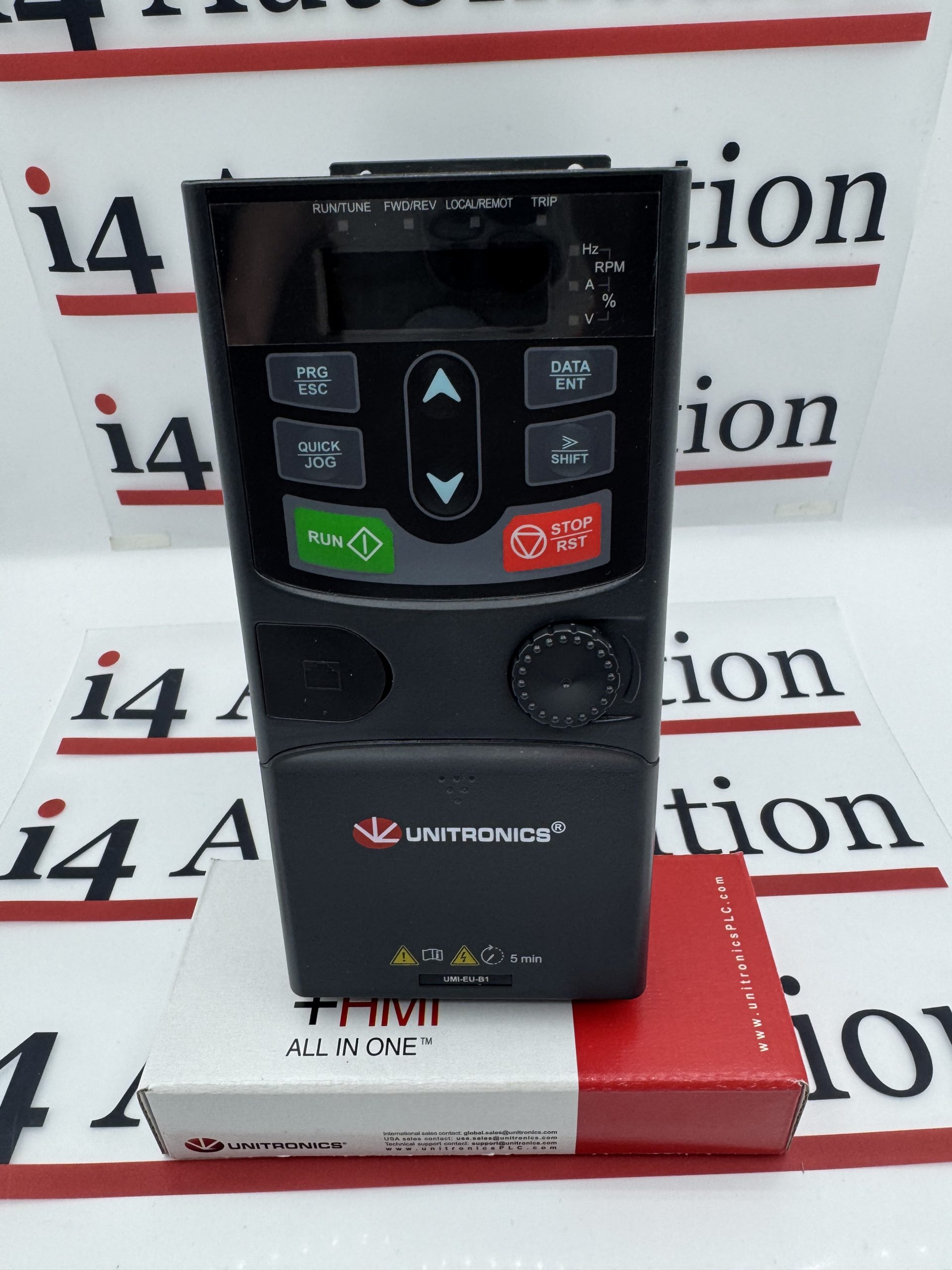

UMI-B1 Series – STO (Variable Speed Drives)

Save IO by using your PLC to directly control your Unitronics VFDs / Inverters (UMI)

This series of inverters has a safe torque off facility certified by TUV-SUD, is CE marked and is available from 0.4 kW to 110 kW.

These inverters can be used as stand alone variable speed drives or they can be controlled by other third party equipment by traditional analogue and digital IO. A Modbus serial communication option is also available. Real cost savings can be made when it comes to integration with a Unitronics PLC/HMI as in built functions, in both VisiLogic and UniLogic, allow fast configuration of motor axes. Control and configuration parameters can be readily transferred to and from Samba, Vision and UniStream controllers.

Description

Simplified workflow allows you to:

Obtain your VFDs, PLC + HMI controllers and related components, as well as technical support, from a single supplier.
Operate your VFD directly from the controller’s HMI panel
Use the same programming software as the PLC control and HMI application to-

Set-up and configure multiple VFDs

Monitor & debug your VFD either via UniLogic/Scope Trace

Remotely Access your VFD via UniLogic

Unitronics Variable Frequency Drives (VFD)

Variable Frequency Drives (VFDs)—also called inverters—optimize machine performance, save energy, and lower machine life cycle costs across a range of applications.

Unitronics VFDs offer options for both single and three phase VFDs from from 0.4 kW and up to 110 kW.

Using MODbus to communicate to several drives you can cut PLC size and save money. PLUS have, all your alarms displayed from all your drives.

Additional information

Drive Size	UMI-0004BE-B1, UMI-0007BE-B1, UMI-0015BE-B1, UMI-0022BE-B1

Manual

Inverter Manual	Description	User Manual
UMI-B1-EU Series	B1 Series User Manual
UMI Inverter setup Series	Setup Guide to UMI’s
VFD filters	Installation Guide & Technical Specification

UMI-B1-EU [STO] (Single Phase 200-240 V)

Article Number	Rated Output Power		Rated Input Current	Rated Output Current	Dimensions W x H x D			Safety Class
	kW	HP	A	A	mm	mm	mm

UMI-0004BE-B1	0.4	0.5	6.5	2.5	80	160	124	Class PLd, SIL2 CAT.3
UMI-0007BE-B1	0.75	1	9.3	4.2	80	160	124
UMI-0015BE-B1	1.5	2	15.7	7.5	80	185	141
UMI-0022BE-B1	2.2	3	24	10	80	185	141

UMI-B1-EU [STO] (Three Phase 380-440 V)

Article Number	Rated Output Power		Rated Input Current	Rated Output Current	Dimensions W x H x D			Safety Class
	kW	HP	A	A	mm	mm	mm

UMI-0007EE-B1	0.75	1	3.4	2.5	80	185	141	Class PLd, SIL2 CAT.3
UMI-0015EE-B1	1.5	2	5	4.2	80	185	141
UMI-0022EE-B1	2.2	3	5.8	5.5	80	185	141
UMI-0040EE-B1	4	5	13.5	9.5	146	256	167	Class PLe, SIL3 CAT.3
UMI-0055EE-B1	5.5	7.5	19.5	14	146	256	167
UMI-0075EE-B1	7.5	10	25	18.5	170	320	197
UMI-0110EE-B1	11	15	32	25	170	320	197
UMI-0150EE-B1	15	20	40	32	170	320	197
UMI-0185EE-B1	18.5	25	47	38	200	341	185
UMI-0220EE-B1	22	30	51	45	200	341	185
UMI-0300EE-B1	30	40	70	60	250	400	202
UMI-0370EE-B1	37	50	80	75	250	400	202
UMI-0450EE-B1	45	60	98	92	282	560	238
UMI-0550EE-B1	55	75	128	115	282	560	238
UMI-0750EE-B1	75	100	139	150	282	560	238
UMI-0900EE-B1	90	120	168	180	338	554	330
UMI-1100EE-B1	110	150	201	215	338	554	330

EMC Filters

The Manual for the below Filters can be downloaded HERE

This manual will also help select the correct filter for you inverter/ environment but if you need any further assistance feel free to contact us at i4 Automation for support on any Unitronics product.

Filter	Line Voltage	Current A	Side	IEC/EN 61800-3 Environment
UMI-S0020	1Ph 220VAC	10	Input	C2
UMI-S0021	1Ph 220VAC	25	Input	C2
UMI-S0022	3Ph 380VAC	6	Input	C2
UMI-S0023	3Ph 380VAC	16	Input	C2
UMI-S0024	3Ph 380VAC	32	Input	C2
UMI-S0025	3Ph 380VAC	45	Input	C2
UMI-S0026	3Ph 380VAC	65	Input	C2
UMI-S0027	3Ph 380VAC	100	Input	C2
UMI-S0028	3Ph 380VAC	150	Input	C2
UMI-S0029	3Ph 380VAC	240	Input	C2
UMI-S0030	1Ph 220VAC	4	Input	C3
UMI-S0031	3Ph 380VAC	7	Input	C3
UMI-S0032	3Ph 380VAC	6	Output	C2
UMI-S0033	3Ph 380VAC	16	Output	C2
UMI-S0036	3Ph 380VAC	32	Output	C2
UMI-S0037	3Ph 380VAC	45	Output	C2
UMI-S0038	3Ph 380VAC	65	Output	C2
UMI-S0039	3Ph 380VAC	100	Output	C2
UMI-S0040	3Ph 380VAC	150	Output	C2
UMI-S0041	3Ph 380VAC	240	Output	C2
UMI-S0250	3Ph 380VAC	400	Input	C2
UMI-S0251	3Ph 380VAC	600	Input	C2
UMI-S0300	3Ph 380VAC	400	Output	C2
UMI-S0301	3Ph 380VAC	600	Output	C2

Power

Power	Input Voltage	200-240VAC, Single Phase 380-440VAC, Three Phase
	Input Frequency	50/60Hz
	Supported Motors	Asynchronous Induction Motors, Three Phase Input
	Supported Motors	0-400Hz
	Overload Capacity	150%, 60 seconds
		180%, 10 seconds
		200%, 1 second

Control

Control	Control Method	SVPWM (Space Vector PWM) SVC (Sensorless Vector Control)
	Control Setting	MODBUS, Analog, Digital, PID, Pulse
	Communication	MODBUS RTU RS-485
	Keypad	Film Keypad: <4kW (5HP) Removable: ≥4kW (5HP)

Inputs

Input

Analogue Inputs

Total 2:

1x 0-10V/0-20mA Input

1x 0-10V Input

Digital Inputs

Total 5:

4x 1kHz inputs

1x 50kHz input

Outputs

Output

Analogue Outputs

≤2.2kW/3HP 1x 0-10V, 0-20mA

>2.2kW/3HP 2x 0-10V, 0-20mA

Digital Outputs

1 output sink/source

Relay Outputs

≤2.2kW/3HP 1x programmable multi-functional output

>2.2kW/3HP 2x programmable multi-functional output

Features

Features	Dynamic Braking Unit	Built-in(≤37kW/50HP)
	Dynamic Braking Unit	Optional (>37kW/50HP)
	EMC
		Built-in C3 (≥4kW/5HP), Comply with IEC/EN 61800-3
		Optional C3 (<4kW/5HP), Comply with IEC/EN 61800-3
		Optional C2, Comply with IEC/EN 61800-3

General

General
	Operating Temperature	(-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
	Altitude	2000m/6600 ft (de-rated by 1% for every additional 100m/330ft above 1000m/3300ft)
	Enclosure Rating	IP 20
	Mounting Options	Wall and Rail (≤2.2kW/3HP)
	Mounting Options	Wall and Flange (>2.2kW/3HP)
	Cooling	Air-Cooling
	Safe Torque Off	Yes
	Compliance	CE, TÜV-SUD Safety Mark

Optional Parts

Below is a list of optional parts that can be added to the VFD / Inverter to give extra functionality
External Keypads, Filters, Braking resistors, Flange Mounting Pole etc.
