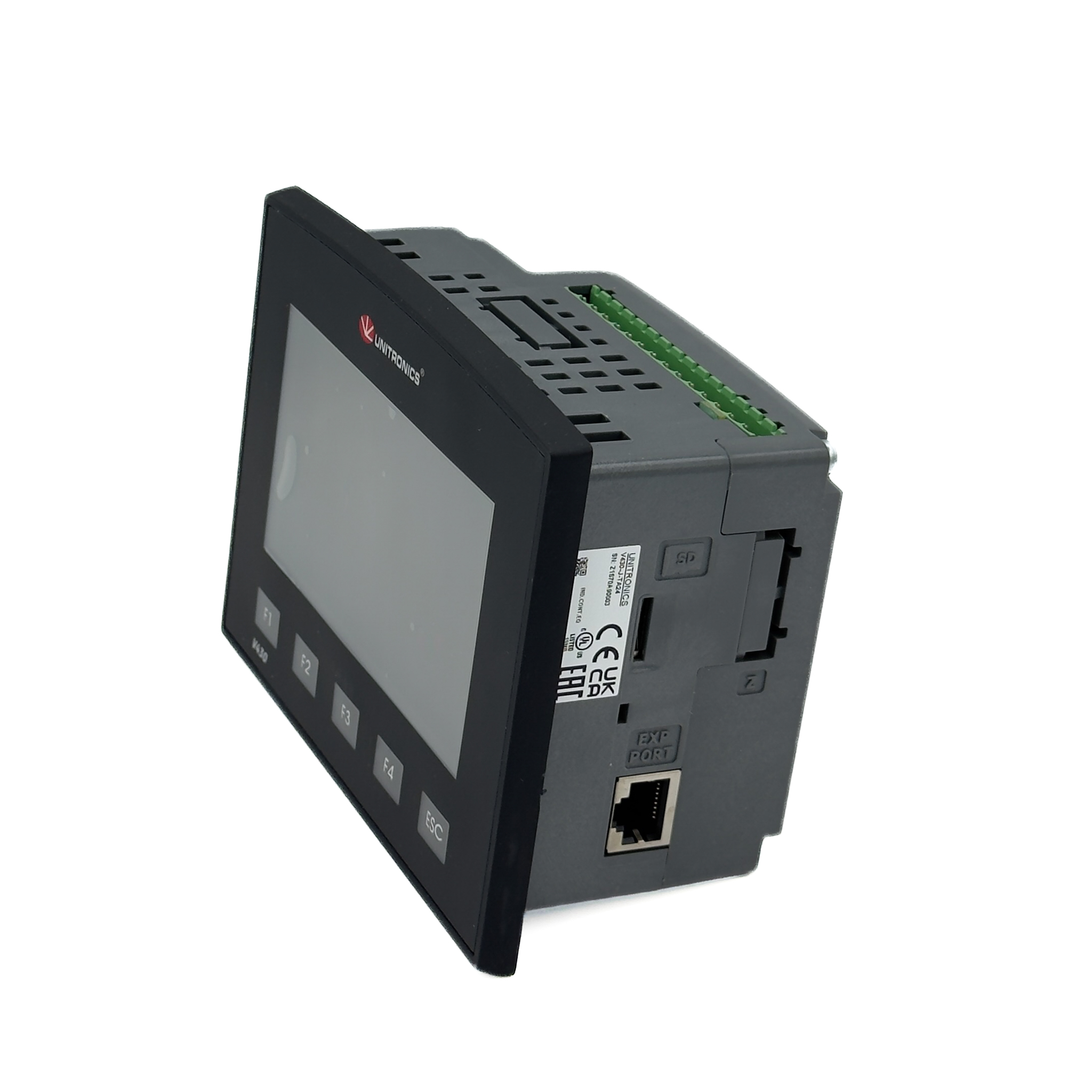

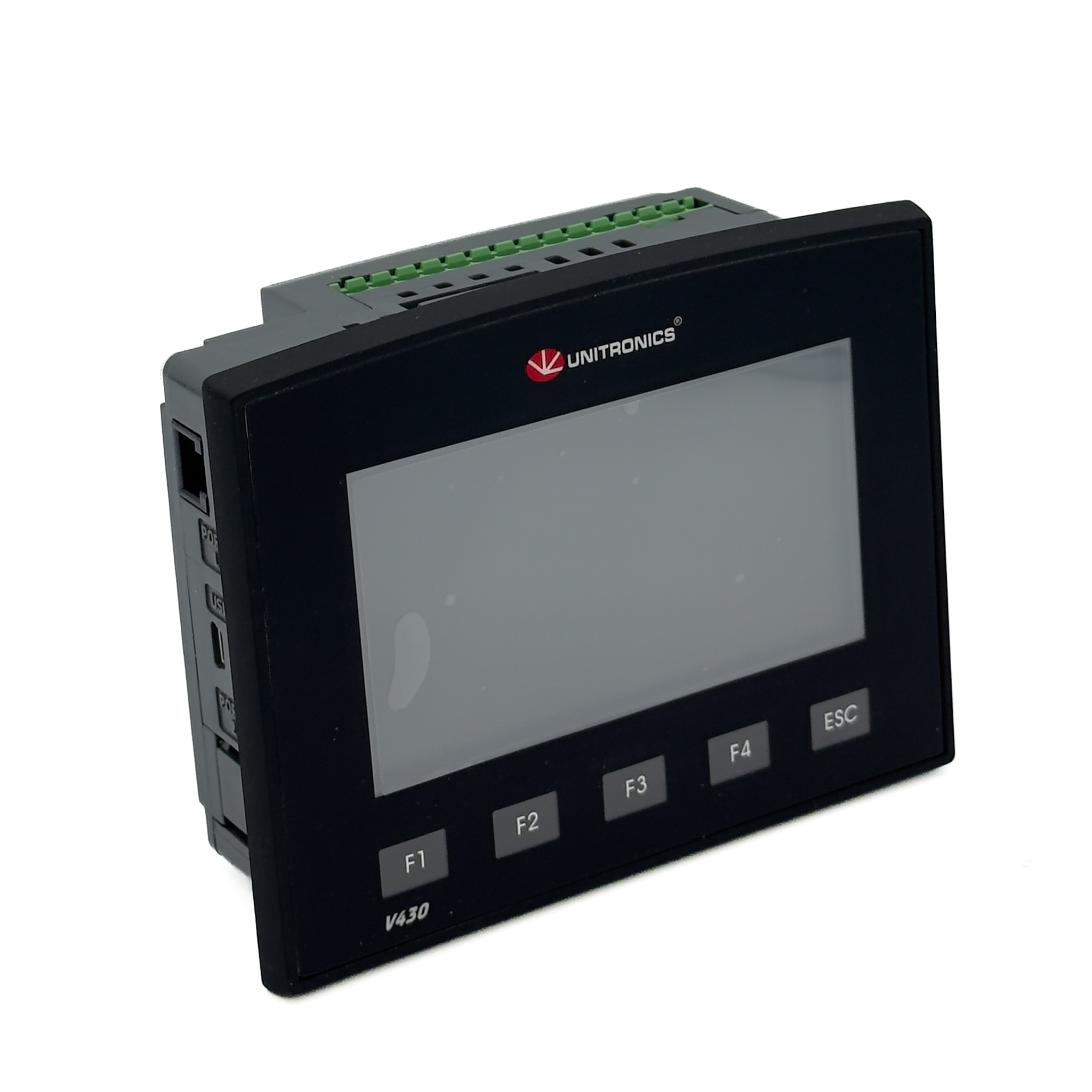

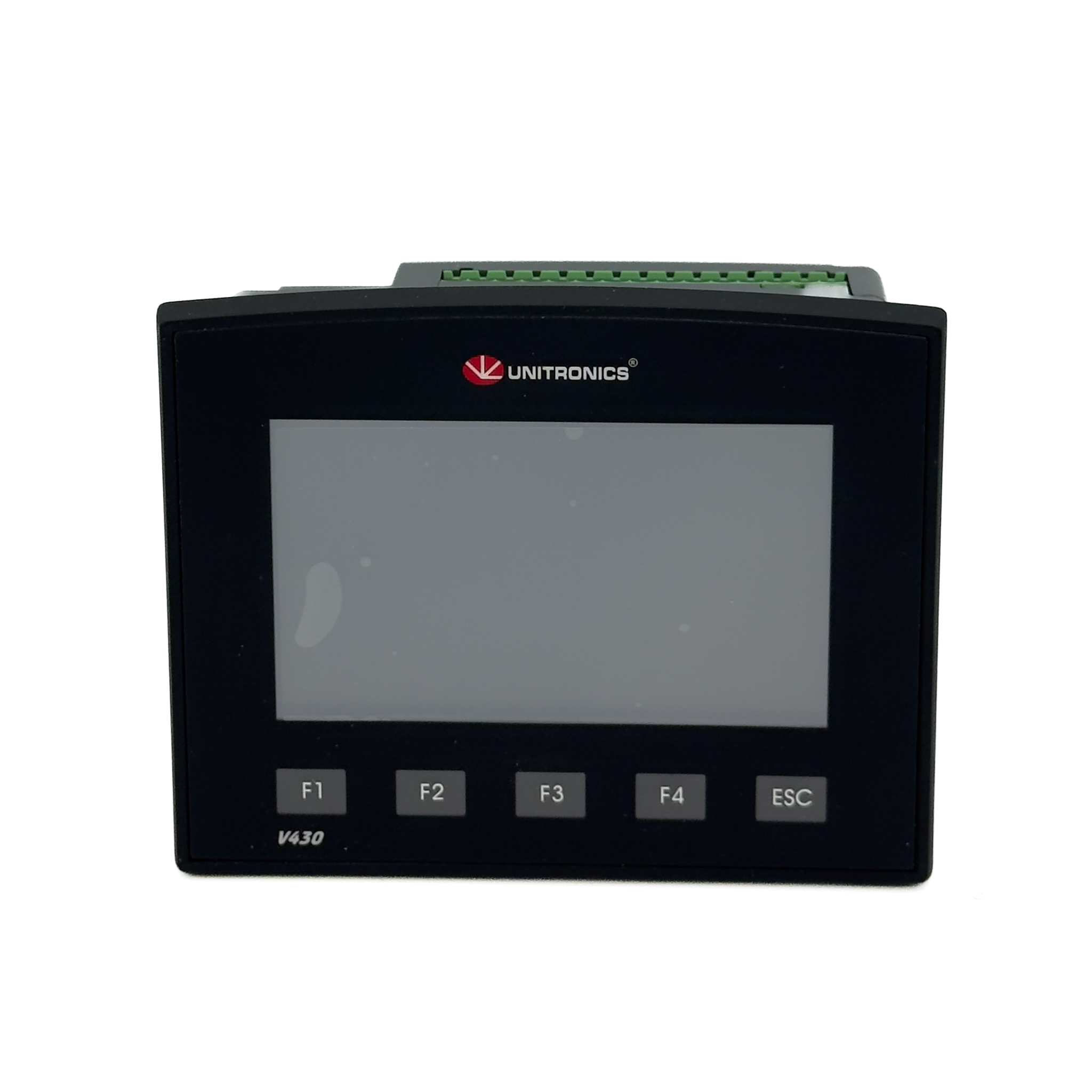

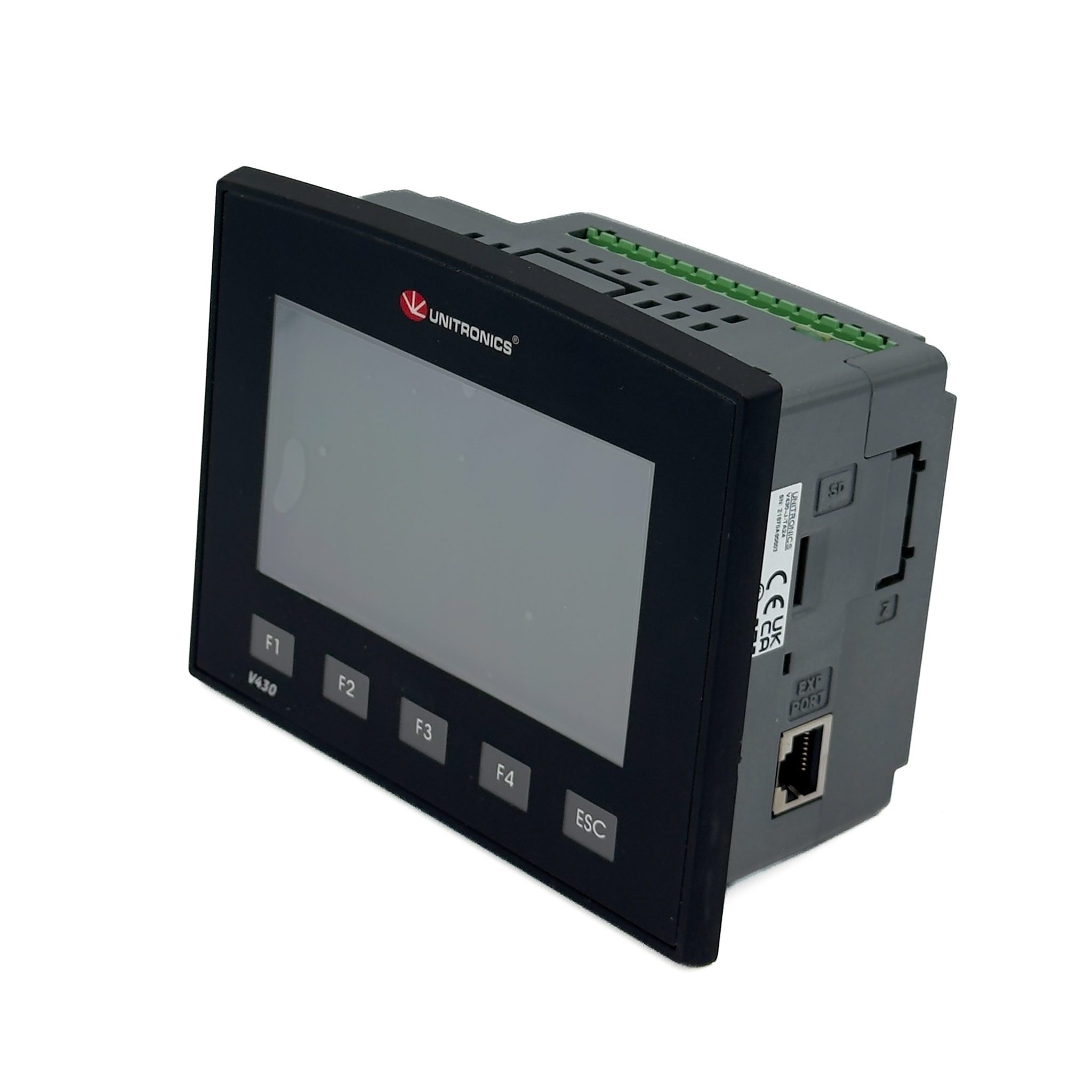

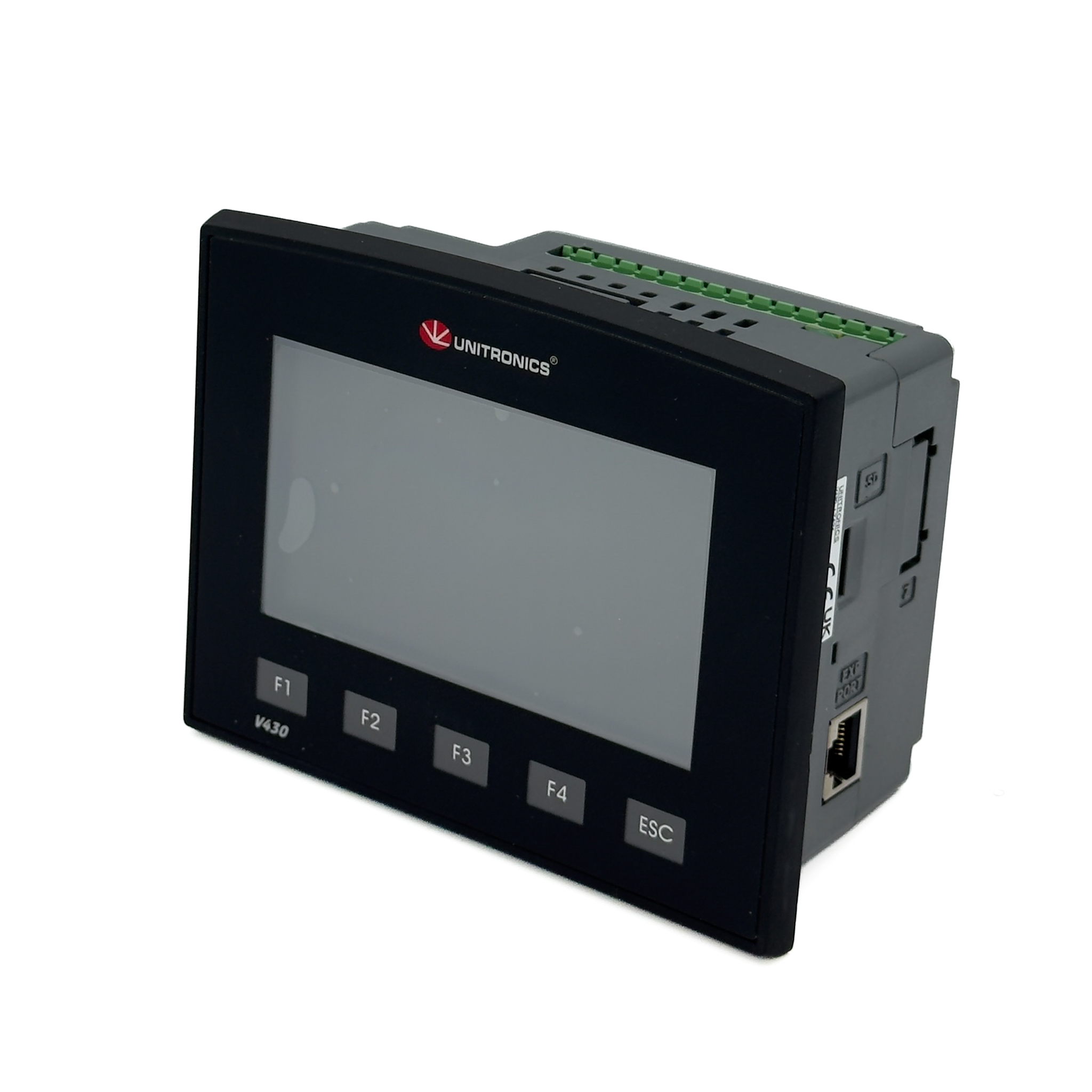

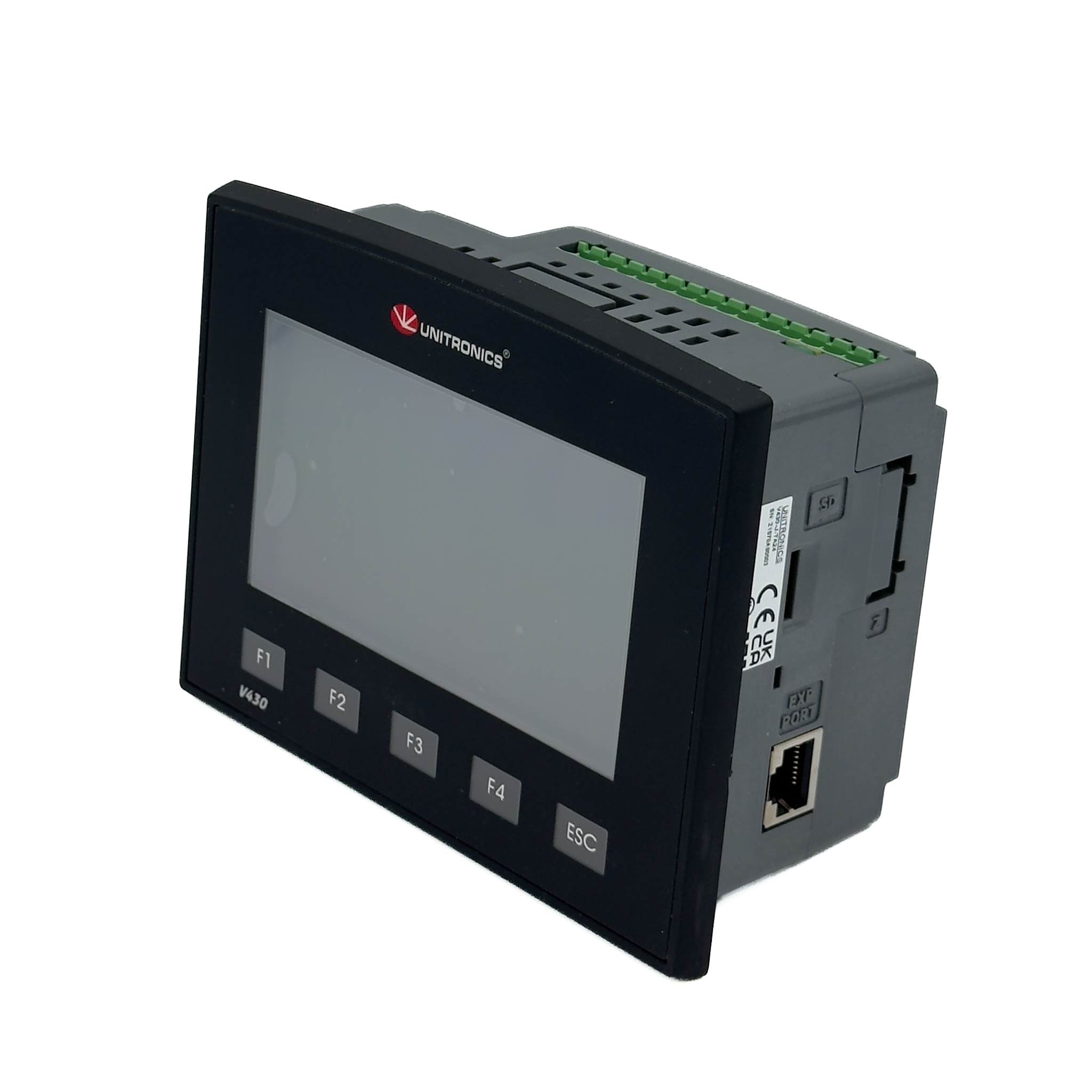

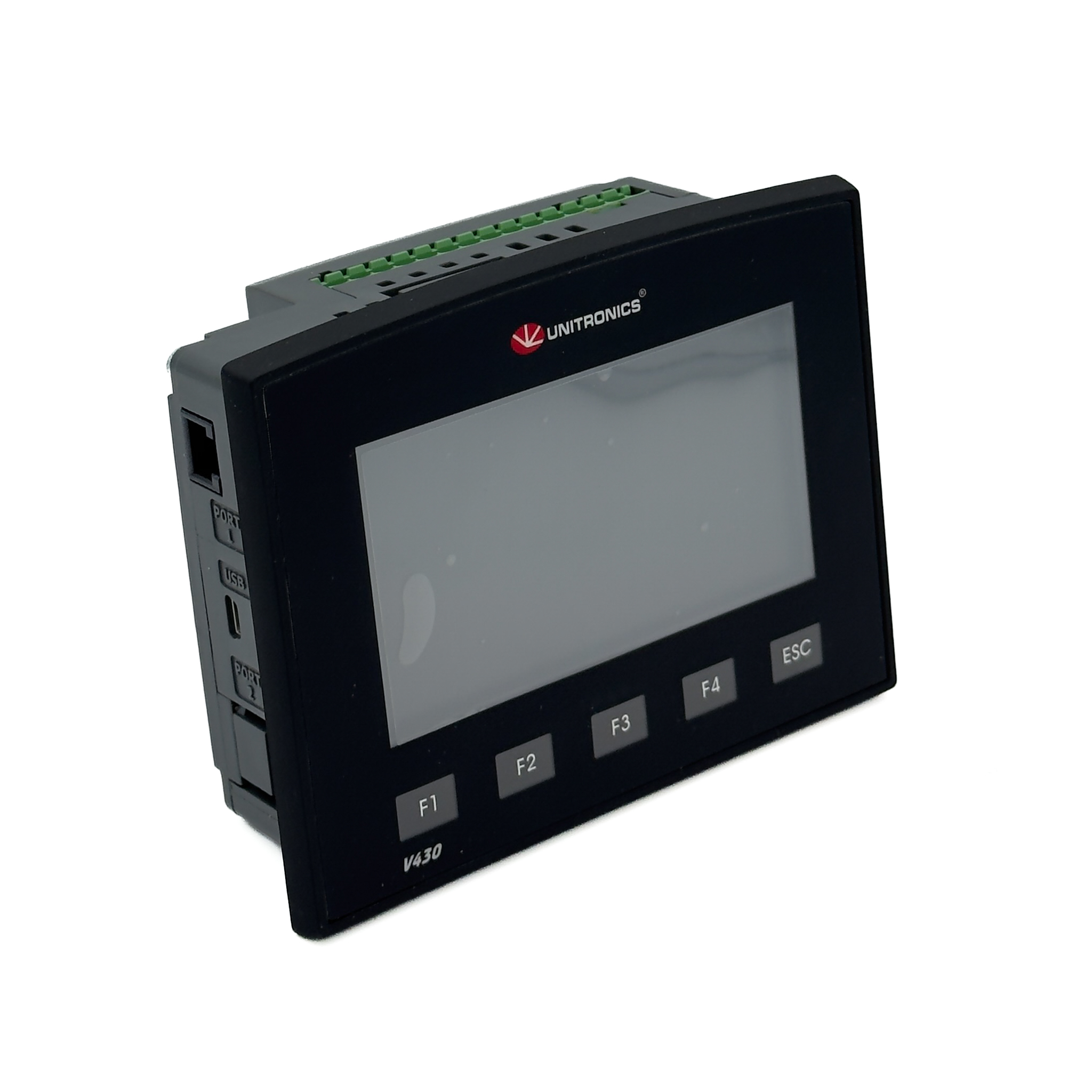

Description

Power features include 24 auto-tuned PID loops to control temperature, level, and pressure. Time-based and immediate interrupt support make Vision 430™ a natural for ‘rapid response’ applications such as packaging machines. Built-in recipe capabilities are supported by Data Tables, which store the parameters required to control a specific process. Data Tables also enable the controller to store data logs to micro-SD card. The micro-SD card also stores application back-ups, and allows complete PLC cloning.

Communication options include Ethernet, cellular and industrial protocols such as MODBUS, DF1 slave, BACnet, J1939, CANopen and more. In addition, the ‘Protocol’ utility allows Vision 430™ to communicate via almost any ASCII protocol. The unit can be directly accessed via a mini-USB programming port, and remotely accessed using GPRS/GSM/CDMA and other IP networks for data acquisition and program download. Another major benefit is the ability to notify supervisors of critical information via e-mail and SMS, enabling real-time remote management.

The machine operator communicates directly with the application via the resistive analogue touchscreen, or remotely, via the Remote Operator utility which displays data, colour trend graphs, and attention-grabbing alarm screens. Display options are almost endless, with more than 1024 user-designed screens supported by 12 MB of memory for images and 1MB for fonts.

OEMs and machine builders profit from intuitive all-in-one VisiLogic software that enables rapid hardware configuration, PLC and HMI application programming. VisiLogic includes a full library of Drag & Drop function blocks for complex automation control tasks, such as PID, and a rich, colour library of industrial images.

Produced by Unitronics, a global developer and manufacturer of PLC + HMI controllers, Vision 430™ is backed by Unitronics standard policy of customer care, including software and utilities, plus personalized technical support. This combines with reduced overall system costs, minimized hardware requirements, saved cabinet space, and reduced Panel-PLC I/O wiring to bring an excellent price-performance ratio.

VisiLogic

VisiLogic is an easy to use and intuitive programming software that is included with this product.

VisiLogic is a powerful software package that allows the Vision™ series of integrated PLC & HMI to be programmed easily and quickly. The software has a familiar intuitive feel and incorporates many advanced features such as discrete program routines, function blocks, data tables, data logging, trending and alarm handling. All of the standard maths functions are available and complex formula can be developed without the need to have a degree in computer science!

The integrated intuitive function blocks really make the Vision™ series the powerful devices that they are. There are many pre-set function blocks available performing a wide variety of advanced tasks as easily as dropping & dragging an icon into your program and configuring a few parameters.

Subjects such as CAN Open networking, Modbus communications, pulse trains outputs and bespoke serial communication protocols all have function blocks available to make the programmers life less difficult. To find out more detail about the range of function blocks available visit the VisiLogic software page HERE.

You can use VisiLogic and the associated software utilities to program, control, access and download data to and from the PLC remotely and directly.

Get more information about the VisiLogic programming software HERE

Manuals

(-N in the part number indicates the item does not have a logo on the front bezel. All components are identical except for this small cosmetic difference)

V430 Model	Description	Install Manual	Technical Manual
V430-J-RH2 (-N)	24 VDC supply 6 digital inputs (1 high speed 200kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 4 Analogue inputs (10 bit, 0-20mA, 4-20mA) 6 Relay Outputs 1 RS232/RS485 port
V430-J-RH6 (-N)	24 VDC supply 6 digital inputs (1 high speed 200kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 4 Analogue inputs (10 bit, 0-20mA, 4-20mA) 6 Relay Outputs 2 HS transistor Outputs (npn 200kHz, 2 can be Pulse train) 1 RS232/RS485 port
V430-J-R34 (-N)	24 VDC supply 20 digital inputs (3 high speed 30kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 12 Relay Outputs 1 RS232/RS485 port
V430-J-TR34 (-N)	24 VDC supply 20 digital inputs (3 high speed 30kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 8 Relay Outputs4 HS transistor outputs (npn 200kHz, 3 can be Pulse train) 1 RS232/RS485 port
V430-J-RA22 (-N)	24 VDC supply 8 digital inputs (1 high speed 30kHz) 2 analogue/digital inputs (14 bit, 0-10V, 0-20mA, 4-20mA) 2 PT100/thermocouple/digital 8 Relay Outputs 2 Analogue outputs (12 bit, 0-10V, 4-20mA) 1 RS232/RS485 port
V430-J-TRA22 (-N)	224 VDC supply 8 digital inputs (1 high speed 200kHz) 2 analogue/digital inputs (14 bit, 0-10V, 0-20mA, 4-20mA) 2 PT100/thermocouple/digital 4 Relay Outputs 4 HS transistor outputs (npn, 200kHz, 2 can be Pulse train) 2 Analogue outputs (12 bit, 0-10V, 4-20mA) 1 RS232/RS485 port
V430-J-T2 (-N)	24 VDC supply 10 digital inputs (3 high speed 30kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 12 Transistor Outputs 1 RS232/RS485 port
V430-J-T38 (-N)	24 VDC supply 20 digital inputs (2 high speed 30kHz) 2 analogue/digital inputs (10 bit, 0-10V, 0-20mA, 4-20mA) 16 Transistor Outputs (pnp, 7 can be 0.5kHz) 1 RS232/RS485 port
V430-J-TA24 (-N)	24 VDC supply 8 digital inputs (1 high speed 30kHz) 2 analogue/digital inputs (14 bit, 0-10V, 0-20mA, 4-20mA) 2 PT100/thermocouple/digital 10 Transistor Outputs (pnp, 5 can be 0.5kHz) 2 Analogue outputs (12 bit, 0-10V, 4-20mA) 1 RS232/RS485 port
V430-J-B1 (-N)	12 / 24 VDC supply No on-board I/O (can be connected to expansion modules) 1 RS232/RS485 port

Inputs/Outputs

		Inputs				Outputs
Part No.	Summary	Digital (Isolated)	HSC/ Shaft Encoder	Analogue	Temp (MEAS)	Transistor (Isolated)	PWM/HSO	Relay	Analogue
V430-J-B1	No onboard I/Os	None	None	None	None	None	None	None	None
V430-J-RH2	10 Digital, 2 D/A Inputs 6 Relay Outputs	12	3 200kHz , 32-bit	2 0-10V, 0-20mA, 4-20mA 10-bit	None	None	None	6	None
V430-J-R34	20 Digital, 2 D/A Inputs 12 Relay Outputs	22	3 30kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 10-bit	None	None	None	12	None
V430-J-TR34	20 Digital, 2 D/A Inputs 8 Relay, 4 High-speed Transistor Outputs	22	3 200kHz , 32-bit	2 0-10V, 0-20mA, 4-20mA 10-bit	None	4 npn	4 (3 PTO) 200 kHz max	8	None
V430-J-RH6	6 Digital, 2 D/A, 4 Analog Inputs 6 Relay Outputs	8	1 200kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA and 4 0-20mA, 4-20mA 10-bit	None	None	None	6	None
V430-J-RA22	8 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs 8 Relay, 2 Analog Outputs	12	1 30kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 14-bit	2 Thermocouple, PT100	None	None	8	2 0-10V, 4 -20mA 12-bit
V430-J-TRA22	8 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs 4 Relay, 2 Analog, 4 High-Speed Transistor Outputs	12	1 200kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 14-bit	2 Thermocouple, PT100	4 npn	4 (2 PTO) 200 kHz max	4	2 0-10V, 4 -20mA 12-bit
V430-J-T2	10 Digital, 2 D/A Inputs 12 Transistor Outputs	12	3 30kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 10-bit	None	12 pnp	7 0.5kHz	None	None
V430-J-T38	20 Digital, 2 D/A Inputs, 16 Transistor Outputs	22	2 30kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 10-bit	None	16 pnp	7 0.5kHz	None	None
V430-J-TA24	8 Digital, 2 D/A, 2 TC/PT100/Digital Inputs 10 Transistor, 2 Analog Outputs	12	1 30kHz, 32-bit	2 0-10V, 0-20mA, 4-20mA 14-bit	2 Thermocouple, PT100	10 pnp	5 0.5kHz	None	2 0-10V, 4 -20mA 12-bit

Communications

Part Number	Description	Install Manual	Technical Manual
V100-17-RS4	1 RS232/RS485 port
V100-17-RS4X	1 RS232/RS485 port (Isolated)
V100-17-ET2 / V100-S-ET2	1 Ethernet port 1 Ethernet port (V350). [For V350 high temp PLC]
V100-17-CAN / V100-S-CAN	1 CANbus port (Isolated) 1 CANbus port (Isolated) [For V350 high temp PLC]
V100-17-PB1	Profibus Slave Module (V130, V350, V430, V700)

IO Adapter & Cables

The screens can have addition or only DIN rail mounted IO using the interfaces below and some of the additional IO modules shown (IO+) and / or the On board IO.
For DIN rail mounted IO you will need an interface unit, first.
	Inputs					Outputs
Part No.	Digital (Isolated)	HSC/ Shaft Encoder	Analogue	Temp Measurement	Weight Measurement	Transistor (Isolated)	PWM/HSO	Relay	Analogue	Manuals
EX-D16A3-RO8	16 pnp/npn	2 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	None	None	8	None
EX-D16A3-TO16	16 pnp/npn	1 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	15 pnp 1 pnp/npn	1 pnp 0.5kHz	None	None
EX90-DI8-RO8	8	1	None	None	None	None	None	8	None
EXF-RC15	9 pnp/npn	3 200kHz 32-bit	None	None	None	4 npn	4(Up to 3 PTO)	2	None
EX-A2X (was EX-A1)	*Needed for IO expansion Local I/O adaptor allows the connection of up to 8 I/O expansion modules per PLC. 1m cable includedOnly 1 EX-A2X module per PLC (If more I/O modules are required the EX-RC1 can be used)
EX-RC1	*Needed for IO expansion Remote I/O adaptor module via CANbus, multiple EX-RC1 adaptors may be connected to each PLC with up to 8 I/O expansion modules per adaptor.Multiple EX-RC1 modules can be used per PLC.
Expansion adapter cables*
EXL-CAB050	Expansion cable (0.5m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB100	Expansion cable (1m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB200	Expansion cable (2m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB295	Expansion cable (2.95m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB400	Expansion cable (4m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB500	Expansion cable (5m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB600	Expansion cable (6m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB1000	Expansion cable (10m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB1200	Expansion cable (12m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB2000	Expansion cable (20m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
EXL-CAB3000	Expansion cable (30m) For use with EX-A2X and Expansion I/O modules beginning EX-D…..
If you need help configuring your Inputs and Outputs please feel free to contact us.
We also offer software support.
IO = Inputs and Outputs

Digital IO

The screens can be expanded via DIN rail mounted IO using the interfaces below together with the on board/ Snap-in IO and ethernet IO expansion options.
Digital Inputs and Outputs (12V DC available on request)
	Inputs					Outputs
Part No.	Digital (Isolated)	HSC/ Shaft Encoder	Analogue	Temp Measurement	Weight Measurement	Transistor (Isolated)	PWM/HSO	Relay	Analogue	Manuals
IO-DI8-TO8	8 pnp/npn	1 5kHz 16-bit	None	None	None	8 pnp	None	None	None
IO-DI8-RO4	8 pnp/npn	1 5kHz 16-bit	None	None	None	None	None	4	None
IO-DI8-RO8	8 pnp/npn	1 5kHz 16-bit	None	None	None	None	None	8	None
EX90-DI8-RO8	8 pnp	1 5kHz 16-bit	None	None	None	None	None	8	None
IO-DI16	16 pnp/npn	1 5kHz 16-bit	None	None	None	None	None	None	None
IO-TO16	None	None	None	None	None	16 pnp	None	None	None
IO-RO8	None	None	None	None	None	None	None	8	None
IO-RO16	None	None	None	None	None	None	None	16	None
IO-DI8ACH	8 AC	None	None	None	None	None	None	None	None
IO-D16A3-RO16	16 pnp/npn	2 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	None	None	16	None
IO-D16A3-TO16	16 pnp/npn	1 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	15 pnp, 1 pnp/npn	1 pnp 0.5kHz npn 50kHz	None	None
EX-D16A3-RO8	16 pnp/npn	2 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	None	None	8	None
EX-D16A3-TO16	16 pnp/npn	1 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	15 pnp 1 pnp/npn	1 pnp 0.5kHz npn 50kHz	None	None
If you need help configuring your Inputs and Outputs please feel free to contact us.
We also offer software support.
IO = Inputs and Outputs

Analogue IO

The screens can have addition or only DIN rail mounted IO using the interfaces below and some of the additional IO modules shown (IO+) and / or the On board IO.
Analogue, Thermocouple, PT100, PT1000 and Load cell units
	Inputs					Outputs
Part No.	Digital (Isolated)	HSC/ Shaft Encoder	Analogue	Temp Measurement	Weight Measurement	Transistor (Isolated)	PWM/HSO	Relay	Analogue	Manuals
IO-AI4-AO2	None	None	4 0-10V, 0-20mA, 4-20mA 12-bit	None	None	None	None	None	2 ±10V 12-bit+sign, 0-20mA, 4-20mA 12-bit
IO-PT400	None	None	None	4 PT100/NI100/NI120	None	None	None	None	None
IO-PT4K	None	None	None	4 PT1000/NI1000	None	None	None	None	None
IO-AO6X	None	None	None	None	None	None	None	None	6 (Isolated) 0-10V, 0-20mA, 4-20mA 12-bit
IO-LC1	1 pnp	None	None	None	1 Loadcell / Strain gauge	2 pnp	None	None	None
IO-LC3	1 pnp	None	None	None	3 Loadcell / Strain gauge	2 pnp	None	None	None
IO-ATC8	None	None	8 Thermocouple, 0-10V, 0-20mA, 4-20mA 14-bit		None	None	None	None	None
IO-AI8	None	None	8 0-10V, 0-20mA, 4-20mA 14-bit	None	None	None	None	None	None
IO-D16A3-RO16	16 pnp/npn	2 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	None	None	16	None
IO-D16A3-TO16	16 pnp/npn	1 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	15 pnp, 1 pnp/npn	1 pnp 0.5kHz npn 50kHz	None	None
EX-D16A3-RO8	16 pnp/npn	2 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	None	None	8	None
EX-D16A3-TO16	16 pnp/npn	1 30kHz 16/32-bit	3 0-20mA, 4-20mA 10-bit	None	None	15 pnp, 1 pnp/npn	1 pnp 0.5kHz	None	None
If you need help configuring your Inputs and Outputs please feel free to contact us.
We also offer software support.
IO = Inputs and Outputs

Modem & Routers

Part No.	Description	Install Manual	Quick Start Manual	User Guide
GSM-KIT-16J	KIT,MODEM GPRS,CINTERION ,BGS2T		N/A	N/A
GSM-KIT-17J-3G	KIT,MODEM GPRS,CINTERION ,EHS6T		N/A	N/A
UniStream Cloud Routers
UCR-ST-B5-EU	Unitronics Router B5 Europe
UCR-ST-B8-EU	Unitronics Router B8 Europe
UCR-ST-B5-AT	Unitronics Router B5 USA AT&T
UCR-ST-B8-AT	Unitronics Router B8 USA AT&T
UCR-ST-B5-VE	Unitronics Router B5 USA Verizon
UCR-ST-B8-VE	Unitronics Router B8 USA Verizon
UCR-ST-B5-SA	Unitronics Router B5 Rest of World
UCR-ST-B8-SA	Unitronics Router B8 Rest of World
UCR-OP-B5-DIN	UCR B5B8 DIN RAIL KIT	N/A
Legacy i4A Routers
RUT230i4A	Teltonika RUT230 HSPA+ 3G Router with 2 x Ethernet ports and Wi-Fi- supplied with DIN rail mounting kit + magnetic indoor aerial.	Discontinued
RUT240i4A	Teltonika RUT240 HSPA+ 4G Router with 2 x Ethernet ports and Wi-Fi- supplied with DIN rail mounting kit + magnetic indoor aerial.	Discontinued
BAC Net routers
GW-BAC1	BACnet to Modbus Gateway
GW-KNX1	BACnet to Modbus Gateway
ULC-BNET101	BACnet IP Server Unistream License	N/A

24V DC Power Supplies

Part Number	PU	Data Sheet
722752	Regulated, 18 W Power Supply
722753	Regulated, 30 W Power Supply
722754	Regulated, 60 W Power Supply
722758	Regulated, 120 W Power Supply
722759	Regulated, 240 W Power Supply
722800	Regulated, 480 W, 3-Phase Power Supply
